SIC73F1
HDX Multi-Page Transponder
Shipping: Approximatrly 30-45 days From Silicon Craft Technology, Thailand
SIC73F1
HDX Multi-Page Transponder
134.2 kHz, Multipage 1360-bit R/W HDX RFID Transponder
Low-frequency half-duplex (HDX) RFID transponder with 1,360-bit multipage read/write memory. LF HDX RFID transponder operates at 134.2 kHz frequency band. The transponder also support to SEMI 144-0312 for Wafer carrier tracking application.
Highlight Features
- Half-Duplex contactless read/write data transmission
- Multipage Transponder (MPT)
- On-chip rectifier and voltage limiter
Interface and Peripheral
- Compliant with ISO 11784/11785 HDX Animal tag ID data
- Support to SEMI E144-0312
- Uplink modulation: FSK (Frequency Shift Keying)
- Uplink data rate: 134.2 kHz (data0) and 124.2 kHz (data1)
Memory
- 1,360 bits EEPROM
- 17 pages read/write memory
- 100,000 erase/write cycles
- 10 years non-volatile data retention
Operating Condition
- Carrier frequency fc is 134.2 kHz
- Operating temperature: –25C to 85C
Package

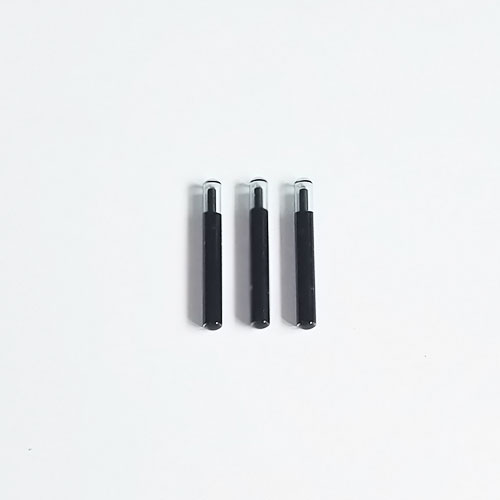

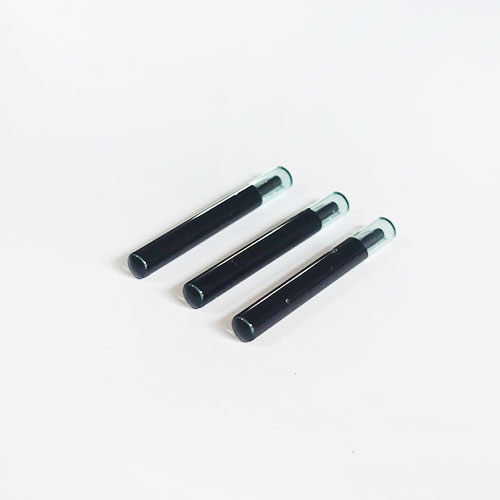

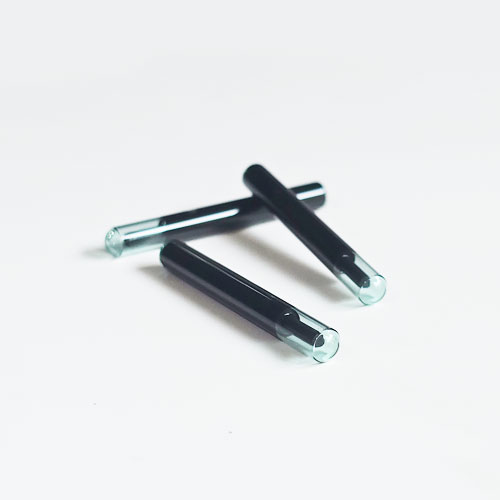

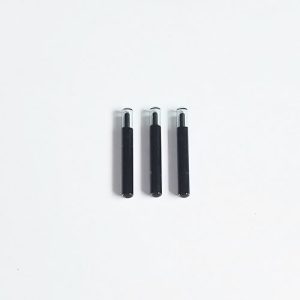

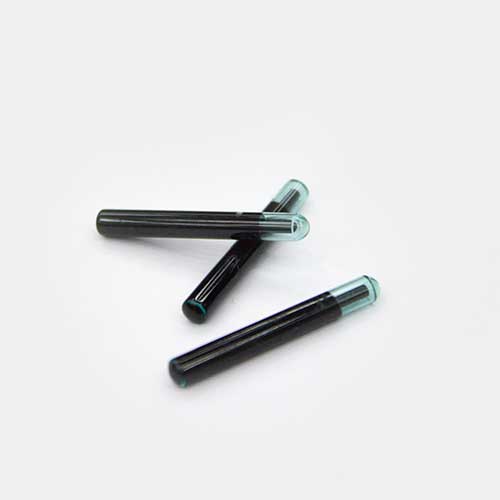

- Glass Transponder 32 mm (Bio-glass with black epoxy)
Applications
- Wafer carrier tracking
- Access control system
- Industrial management
